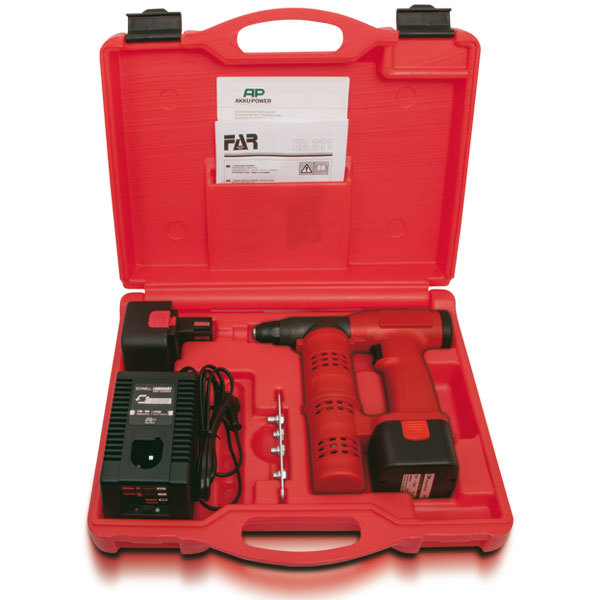

EB 311 - Battery tool for blind rivets

Cod. 700311

EB 311
EB 311

The riveting tool

can be used for high performances FarBolt rivets and similar, by assembling the KIT cod. 74000040 that is composed of:
71345476 Clamps for rivets - 3 pcs.
717016 Nozzle – 1 pcs.
717018 Nozzle – 1 pcs.

Particularly recommended for Photovoltaics.
Standard rivets Multistage rivets Blind rivets with grooved nail
P (mm)
1 0,8
2,4
3
3,2
4
4,8
6
Rivet type P mm Clamps Nozzle Cone
Tamp
Multifar Inox
3,2 1 71345507 imgtable2 717002 imgtable2 710859
4 1 717003
4,8 1 717004
Standard rivets Ø 6 only in aluminium.

Maintenance instructions are available in the Video section.
Download the manual  EB311 use and maintenance manual
Which is the correct nozzle for a blind rivet? Reference table for noozles
Codice Descrizione Visualizza
71C01354 Battery 12 V / 3 Ah Ni-Mh FAR
712409 Battery charger FAR
723346 Extended head 130 mm Extended heads
723097 Extended head 60 mm Extended heads
719007 Extended nozzle U1 ø 2,5 ÷ 3,2 Extended nozzles U1
719001 Extended nozzle U1 ø 3,5 / 4 Extended nozzles U1
719002 Extended nozzle U1 ø 4,8 Extended nozzles U1
719003 Extended nozzle U1 ø 6 ÷ 7,8 Extended nozzles U1
719008 Extended nozzle U2 ø 2,5 ÷ 3,2 Extended nozzles U2
719004 Extended nozzle U2 ø 3,5 / 4 Extended nozzles U2
719005 Extended nozzle U2 ø 5 Extended nozzles U2
719006 Extended nozzle U2 ø 6 ÷ 7,8 Extended nozzles U2
72A00186 Head with reduced section 35 mm Heads with reduced section
72A00162 Head with reduced section 60 mm Heads with reduced section
74000040 Kit for high-performance rivets FAR
71345652 Nozzle for rivet S-Trifar / X-Trifar ø 5,2 FAR
74000067 Nozzle head with reduced section S-Tifar / X-Tifar ø 5,2 kit FAR
Pos. Codice Descrizione Qta
01 71345507 High-performance clamps 3
02 710849 Clamps opener 1
03 711158 Spring 1
04 710859 Clamps holding cone 1
05 71345944 Sleeve carrying nozzle 1
06 71345941 Cone holder 1
07 712398 Body 1
08 72B00002 Electronic board 1
09 712400 Push-button 1
10 722405 Cam 1
11 712406 Left shell 1
12 712407 Right shell 1
13 712408 Cap 1
14 717004 Nozzle for rivet ø 4,8 Cu / Steel 1
15 717002 Nozzle for rivet ø 4 1
16 717003 Nozzle for rivet ø 4,8 All. 1
17 717001 Nozzle for rivet ø 2,4 ÷ 3,4 1
18 717005 Nozzle for rivet ø 6 / 6,4 1
19 711357 Wrench kit 1
20 72A00069 Motor with clutch 1
21 712403 Sleeve 1
22 712409 Battery charger 1
23 71C01354 Battery 12 V / 3 Ah Ni-Mh 2
24 72C00006 Gearmotor 1
25 712412 Spring 1
26 712337 Dowel pin ø 3 x 14 UNI 1707 1
27 712830 Screw TBIC ø 3 x 13 UNI 10227 12
28 713412 Screw STCE M4 x 5 UNI 5923 1
29 713227 Jacket 1
30 713034 Microswitch SS-5 GL 13 1
31 71345942 Spring 1
32 71345943 Washer 1
33 710391 Seeger ring 30 UNI 7437 1
KITA 74000002 Ring kit 1
KITB 74000038 Motor flange kit 1
Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
  • Read BEFORE watching the video
  • 01 - Preliminary operations
  • 02 - Dismounting the clamps holding cone
  • 03 - Disassembling the riveting tool
  • 04 - Clamping the riveting tool body
  • 05 - Check on the electronic pcb
  • 06 - Dismounting the gearmotor group
  • 07 - Dismounting the cone holding head
  • 08 - Mounting the cone holding head
  • 09 - Mounting the gearmotor group
  • 10 - Reassembling the riveting tool
  • 11 - Mounting the clamps holding cone
  • 12 - Final operations
  • 13 - EB 310 electronic p.c.b. maintenance
  • 14 - EB 310 gearmotor group maintenance
  • 15 - EB 311 dismounting and mounting the cone holding head
SET OF SPECIAL TOOLS SUPPLIED ON REQUEST

eb311

  • Set of commercial adjustable wrenches
  • Set of commercial socket wrenches
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers
  • Grease Berulub FR/16
  • Grease: Sliding grease HD 200 F
  • Loctite: N. 542

In case of continuous cycle

Instructions for clamps maintenance

EB 311
