EB 400 - Battery tool for blind rivets

Cod. 700400

EB 400
EB 400

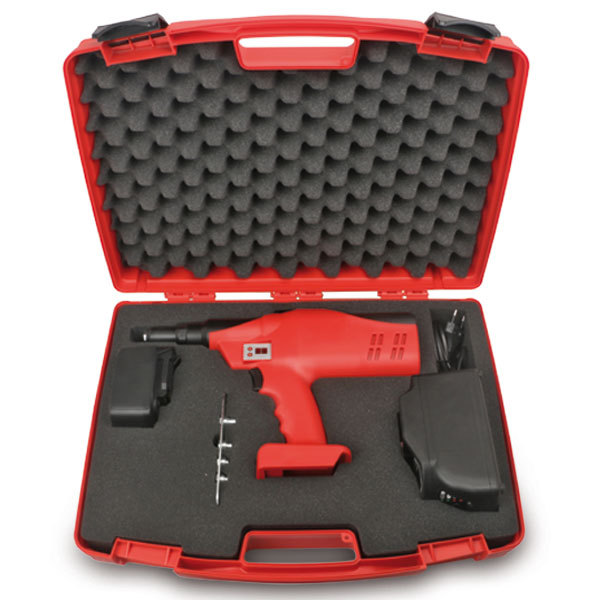

The battery riveting tool

with innovative and ergonomic design is powered by a lithium-ion battery, that can reach 18mm stroke.

This cordless tool

also stands out for:
- The excellent weight balance, which ensures functionality and easy handling
- The electronic control of the riveting process
- The characteristic multifunction display, which shows the charge level of the battery and the cycles counter.
Standard rivets Multistage rivets Blind rivets with grooved nail
P (mm)
1 0,8
2,4
3
3,2
4
4,8
Rivet type P mm Clamps Nozzle Cone
Tamp
Multifar Inox
3,2 1 71345507 imgtable2 717002 imgtable2 710859
4 1 717003
Standard rivets Ø 4,8 except for stainless steel.
Multifar rivets Ø 4,8 only in aluminium.

Maintenance instructions are available in the Video section.
Download the manual  EB400 use and maintenance manual
Which is the correct nozzle for a blind rivet? Reference table for noozles
Codice Descrizione Visualizza
721314 Extended head 130 mm Extended heads
720973 Extended head 210 mm Extended heads
719007 Extended nozzle U1 ø 2,5 ÷ 3,2 Extended nozzles U1
719001 Extended nozzle U1 ø 3,5 / 4 Extended nozzles U1
719002 Extended nozzle U1 ø 4,8 Extended nozzles U1
719008 Extended nozzle U2 ø 2,5 ÷ 3,2 Extended nozzles U2
719004 Extended nozzle U2 ø 3,5 / 4 Extended nozzles U2
719005 Extended nozzle U2 ø 5 Extended nozzles U2
721876 Head with reduced section 35 mm Heads with reduced section
721877 Head with reduced section 60 mm Heads with reduced section
71345652 Nozzle for rivet S-Trifar / X-Trifar ø 5,2 FAR
Pos. Codice Descrizione Qta
01 717003 Nozzle for rivet ø 4,8 All. 1
02 71346060 Sleeve carrying nozzle 1
03 710859 Clamps holding cone 1
04 71345507 High-performance clamps 3
05 72000162 Clamps opener structure 1
06 710853 Spring 1
07 72A00252 Head 1
08 710102 Gasket OR 113 1
09 71346078 Cone holder 1
10 71346077 Ring nut 1
11 71346079 Screw 1
12 72A00257 Recirculating ball screw 1
13 71346073 Shoulder 1
14 71C01254 Feather key UNI 6604-A 5 x 5 x 12 1
15 72B00082 Motor unit 1
16 71346061 Pinion 1
17 72C00033 Gearbox 1
18 71346068 Gear 1
19 71C00668 Seeger ring 8 UNI 7435 1
20 712576 Screw TE M5 x 14 UNI 5739 2
21 71346048 Nails container 1
22 71346051 Support 1
23 71C00963 Dowel pin ø 3 x 18 UNI 1707 1
24 72A00253 Clutch 1
25 71346072 Stop ring 1
26 71346074 Spacer 1
27 71346071 Gear 1
28 71346120 Flange 1
29 71346075 Ring 1
30 71C01224 Bearing 30203 2
31 712830 Screw TBIC ø 3 x 13 UNI 10227 8
32 71346050 Right shell 1
33 72A00256 Electronic board 1
34 72000054 Left shell 1
35 717001 Nozzle for rivet ø 2,4 ÷ 3,4 1
36 717002 Nozzle for rivet ø 4 1
37 717004 Nozzle for rivet ø 4,8 Cu / Steel 1
38 71C01302 Battery P5006 (14,4 V / 3 Ah Li-lon) 1
39 71C01309 Battery charger L-2830 MS 1
40 711357 Wrench kit 1
41 71C01348 Screw TCIC ø 2,2 X 4,5 UNI 6954 1
42 71345516 Spring 1
43 71C01395 Gasket ORM 33 x 3 1
44 71346227 Guard 1
KITA 74000076 Kit limit switch 1
KITB 74000075 Push-button kit 1
Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
  • Read BEFORE watching the video
  • 01 - Preliminary operations
  • 02 - Dismounting the clamps holding cone
  • 03 - Disassembling the riveting tool
  • 04 - Dismounting the gearmotor group
  • 05 - Dismounting the recirculating ball screw
  • 06 - Dismounting the cone holding head
  • 07 - Dounting the cone holding head
  • 08 - Mounting the recirculating ball screw
  • 09 - Mounting the gearmotor group
  • 10 - Reassembling the riveting tool
  • 11 - Mounting the clamps holding cone
  • 12 - Operations finales
SET OF SPECIAL TOOLS SUPPLIED ON REQUEST

eb400

  • Loctite: N. 270
  • Grease: Panolin Special Grease 2
  • Grease: Sliding Grease HD 200 F
  • Set of commercial adjustable wrenches
  • Set of commercial allen wrenches
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers
  • Face spanner (Ø 6 mm)

Instructions for use

Instructions for clamps maintenance
