KJ47

Hydropneumatic tool for blind rivet nuts in carton box with single size of head and mandrel to be chosen from M4 ÷ M10.
Heads and tie rods of different sizes available separately on request.

KJ47
KJ47

EXTRA KJ47 - Hydropneumatic for blind rivet nuts

KJ47 Hydropneumatic tool for blind rivet nuts in plastic case with mandrels and heads of the sizes M4 ÷ M10

Code 705116

KJ47

M Aluminium Steel Stainless steel Blind rivet bolts
M4
M5
M6
M8
M10
Hydropneumatic riveter for rivet nuts, pneumatic adjustment of the power.
On demand mandrels and heads in inches.

Maintenance instructions are available in the Video section.
Maximum force 24000 N.
Stroke 7 mm.

Download the User manual KJ47 use and maintenance manual
KJ47
Code Description View
71346792 Head M 5 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
71346793 Head M 6 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
71346794 Head M 8 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
71346778 Tie rod M 5 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
71346779 Tie rod M 6 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
71346780 Tie rod M 8 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ46
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 71346790 Head M8 1 31.90
02 71346775 Tie rod M 8 1 17.20
03 71346791 Head M10 1 31.90
04 71346776 Tie rod M 10 1 17.20
05 71346789 Head M6 1 31.90
06 71346774 Tie rod M 6 1 17.20
07 71346788 Head M5 1 31.90
08 71346773 Tie rod M 5 1 17.20
09 71346787 Head M4 1 31.90
10 71346772 Tie rod M 4 1 17.20
11 710876 Tie rod release pin 1 3.60
12 72A00053 Oil container assembly 1 14.70
13 712225 Wrench 4 mm 1 2.50
KIT A 74000121 Pneumatic kit 61.80
Code Description Qty
71C00697 Gasket OR 5-256 1
710925 Gasket OR 027 1
71C00295 Ring Parbak 8-028 1
71C00296 Gasket OR 5-670 1
711062 Gasket OR 2-126 1
710244 Gasket OR 2-130 1
713275 Gasket OR 2-122 1
713390 Gasket OR 2-007 2
710258 Gasket OR 5-612 1
71C00529 Gasket XR 008 PP180 B 1
711338 Gasket OR 2-003 2
710918 Gasket OR 2-005 2
716060 Gasket OR 2-010 4
713394 Gasket OR 2-106 1
710528 Gasket OR 008 1
710376 Gasket OR 2-009 2
710572 Gasket OR 2-120 1
710385 Gasket OR 2-006 2
713271 Gasket OR 2-014 2
71C00355 Gasket OR 1,78 x 8,73 1
71C00356 Gasket OR 1,78 x 7,66 1
710916 Gasket OR 2-015 1
710528 Gasket OR 008 1
710258 Gasket OR 5-612 1
710922 Gasket OR 018 2
71C00697 Gasket OR 5-256 3
711339 Gasket OR 2-129 1
710823 Cage 3
71C01782 Gasket OR 2-117 1
71C01132 Gasket OR 2-123 1
716209 Gasket OR 5-243 1
713398 Gasket OR 2-340 1
710593 Gasket OR 2-153 1
710350 Gasket OR 2-109 4
710427 Gasket OR 013 1
711378 Gasket OR 2-011 1
710594 Gasket OR 2-012 1
712314 Gasket OR 2-107 1
713271 Gasket OR 2-014 2
71C00356 Gasket OR 1,78 x 7,66 1
71C00355 Gasket OR 1,78 x 8,73 1
710528 Gasket OR 008 1
710258 Gasket OR 5-612 1
710921 Gasket OR 2-115 1
KIT Q 74000122 Oil-dynamic kit 42.80
Code Description Qty
711722 Gasket B-094063-B / NEI 1
713389 Gasket 157118-B / NEO 1
71346560 Gasket TTS 16x21x5,7 2
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 71346743 Ring nut 1 8.50
02 71346712 Sleeve 1 47.00
03 71346713 Sleeve carrying tie rod 1 18.30
04 71346741 Body 1 24.50
05 71346708 Driving shaft 1 15.60
06 71345516 Spring 1 1.60
07 71346707 Nut 1 9.00
08 710555 Washer 400-004-4490 1 2.20
09 713405 Screw TBCE M6 x 10 ISO 7380 1 0.30
10Q 711722 Gasket B-094063-B / NEI 1 14.00
11 713402 Seeger ring JV 25 1 1.50
12A 71C00697 Gasket OR 5-256 1 1.10
13A 710925 Gasket OR 027 1 0.90
14 71345261 Flange 1 7.00
15A 71C00295 Ring Parbak 8-028 1 4.20
16A 71C00296 Gasket OR 5-670 1 2.40
17 71345258 Jacket 1 68.70
18Q 713389 Gasket 157118-B / NEO 1 12.70
19A 711062 Gasket OR 2-126 1 1.60
20 71345264 Hydraulic piston 1 136.30
21 71345260 Ring nut 1 10.90
22A 710244 Gasket OR 2-130 1 2.00
23A 713275 Gasket OR 2-122 1 1.50
24 72A00125 Pneumatic Motor F001 1 830.10
25 713308 Cap 2 2.40
26A 713390 Gasket OR 2-007 2 0.90
27 72A00007 Air connector 1 6.90
28 716150 Screw TSCE M4 x 12 UNI 5933 2 0.30
29 72A00188 Valve unit for motor control 1 84.50
30G 713158 Obturator 1 0.00
31G 71345174 Right spear valve 1 0.00
32A 710258 Gasket OR 5-612 1 0.90
33A 71C00529 Gasket XR 008 PP180 B 1 2.90
34 713406 Screw TSCE M4 x 25 UNI 5933 1 0.30
35 716198 Screw TCCE M4 x 12 UNI 5931 1 0.30
36 72000359 Fender motor 1 11.20
37G 710319 Screw STCE.M5 x 5 UNI 5923 1 0.40
KIT B 74000123 Tie rod clutch kit 14.00
KIT C 74000124 Hydraulic cylinder Kit 152.50
KIT D 74000025 Hook kit 4.90
KIT E 74000021 Silencer kit 8.30
KIT F 74000029 Rod kit 17.00
KIT G 74000073 Spear valve unit 7.80
Code Description Qty
713158 Obturator 1
71345174 Right spear valve 1
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01AHI 711338 Gasket OR 2-003 2 0.90
02AHI 710918 Gasket OR 2-005 2 0.90
03AHI 716060 Gasket OR 2-010 4 0.90
04 713401 Pin NRB ø 3 x 19.8 1 0.40
05 71345648 Push-button 1 5.00
06 71345649 Unscrewing button 1 2.10
07A 713394 Gasket OR 2-106 1 0.90
08AM 710528 Gasket OR 008 1 0.40
09AM 710376 Gasket OR 2-009 2 0.90
10AM 710572 Gasket OR 2-120 1 1.30
11AM 710385 Gasket OR 2-006 2 0.40
KIT H 74000033 Upper piston kit 11.50
KIT I 74000034 Lower piston kit 10.00
KIT L 74000035 Retaining plate kit 4.90
KIT M 74000125 Handgrip kit 96.70
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 713434 Seeger ring 11 UNI 7435 1 0.30
02 72000624 Rotating connector 1 0.00
03 72A00028 Air connector unit 1/4" 1 6.90
04A 713271 Gasket OR 2-014 2 1.00
05 71C01750 Nail 3,5x0,7 3 1.30
06A 71C00355 Gasket OR 1,78 x 8,73 1 0.90
07A 71C00356 Gasket OR 1,78 x 7,66 1 0.90
08 72000363 Body 1 56.30
09 71C01022 Cap 1/4" 1 2.00
10 711259 Service plug 1 1.80
11 712117 Washer stopping spring 1 1.50
12 710841 Valve 1 10.90
13A 710916 Gasket OR 2-015 1 0.90
14A 710528 Gasket OR 008 1 0.40
15A 710258 Gasket OR 5-612 1 0.90
16 710822 Valve piston 1 5.60
17 710905 Seeger ring 11 UNI 7437 1 0.40
18A 710922 Gasket OR 018 2 0.40
19 712268 Spring guide plug 1 5.80
20AP 710921 Gasket OR 2-115 3 1.50
21 710402 Seeger ring 22 UNI 7437 1 0.40
22A 711339 Gasket OR 2-129 1 2.40
23AP 710823 Cage 2 0.00
24 71346470 Silencer 1 4.90
25 72000522 Pneumatic cylinder 1 99.40
26 71346718 Rod guide 1 25.60
27 71346719 Tube ø 8 x 7 1 2.30
28 71346717 Rod 1 50.10
29 71346716 Connector 1 15.60
30 71346715 Nut M22 X 1 1 4.00
31 72000405 Cylinder bottom 1 53.10
32 71C01644 Regulator CLR 1/8" PR03 1 47.80
33 71C01296 Seeger ring 100 UNI 7437 1 3.70
34 71346084 Protection bottom 1 8.10
35AI 71C01782 Gasket OR 2-117 1 0.50
36Q 71346560 Gasket TTS 16x21x5,7 2 15.20
37AI 71C01132 Gasket OR 2-123 1 1.40
38AI 716209 Gasket OR 5-243 1 2.70
39AN 713398 Gasket OR 2-340 1 6.60
40A 710593 Gasket OR 2-153 1 3.30
41AN 710350 Gasket OR 2-109 2 1.00
42 71C01674 Manometer 1 43.50
43A 710427 Gasket OR 013 1 0.40
44A 711378 Gasket OR 2-011 1 0.90
45A 710594 Gasket OR 2-012 1 0.90
46A 712314 Gasket OR 2-107 1 0.90
47 71346721 Cover 1 0.00
KIT N 74000030 Pneumatic piston kit 29.40
KIT O 74000126 Valve kit 13.40
KIT P 740840 Valve spacer kit 10.70
KIT R 74000127 Dowel pin kit 20.10
KIT S 74000129 Bushing kit for pressure gauge 14.00
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 71C00764 Bearing 61801 1 42.80
02 71345645 Gear cage 1 111.20
03 71345644 Planetary gear 3 61.80
04 71345643 Crown gear 1 66.70
05 71345642 Washer 1 14.60
06 71C00763 Bearing AY7-ZZ 1 9.20
07 71345640 Connector 1 105.00
08 71C00761 Spring pin ø 1,5 x 10 UNI 6875 2 1.10
09 71345639 Vane 5 11.20
10 71345638 Rotor 1 182.30
11 71345637 Outside body 1 179.70
12 71345641 Back cap 1 69.90
13 713037 Pin ø 2 x 9,8 1 1.10
14 71C00762 Bearing 695-ZZ 1 10.10
A 72A00125 Pneumatic Motor F001 830.10
Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
  • Read BEFORE watching the video
  • 01 - Preliminary operations
  • 02 - Air-connector disassembly
  • 03 - Pneumatic motor maintenance
  • 04 - Traction unit maintenance
  • 05 - Disassembly of the pneumatic unit
  • 06 - Oil-dynamic unit maintenance
  • 07 - Disassembly and maintenance of hangrip unit
  • 08 - Oil-dynamic unit reassembly
  • 09 - Refitting the pneumatic motor and hangrip unit
  • 10 - Maintenance of the coil kit
  • 11 - Maintenance of the cylinder bottom
  • 12 - Re-assembly of the pneumatic unit
  • 13 - Re-assembly of the traction unit
  • 14 - Final operations


SET OF SPECIAL TOOLS SUPPLIED ON REQUEST NECESSARY MATERIAL FOR REPAIR WORKS
kj46
  • Loctite: N. 270 - N. 542
  • Grease: Panolin special Grease 2
  • Set of commercial adjustable wrenches
  • Set of commercial allen wrenches
  • Rubber coated hammer
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers

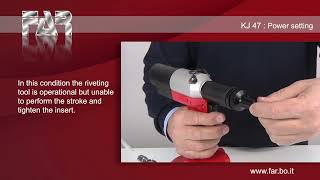

POWER SETTING

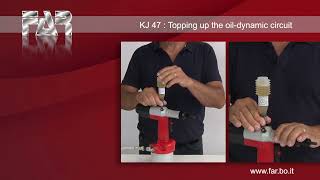

TOPING UP THE OIL-DYNAMIC CIRCUIT

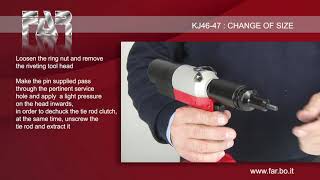

CHANGE OF SIZE

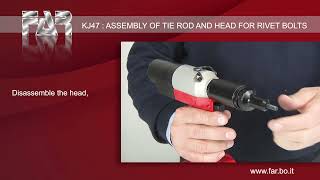

ASSEMBLY OF TIE ROD AND HEAD FOR RIVET BOLTS
