KJ60

Hydropneumatic tool for blind rivet nuts in carton box with single size of head and mandrel to be chosen from M3 ÷ M8 ( Inox M8 excluded ).
Heads and tie rods of different sizes available separately on request.

KJ60
KJ60

EXTRA KJ60 - Hydropneumatic for blind rivet nuts

KJ60 Hydropneumatic tool for blind rivet nuts in plastic case with mandrels and heads in the sizes M3 ÷ M8 ( Inox M8 excluded ).

Code 705034

KJ60

M Aluminium Steel Stainless steel Blind rivet bolts
M3
M4
M5
M6
M8
On demand mandrels and heads in inches.

Maintenance instructions are available in the Video section.
Maximum force 13656 N.
Stroke 7.5 mm.

Download the User manual KJ60 use and maintenance manual
Download the User manual in inches KJ60 use and maintenance manual inch
KJ60
Code Description View
71345231 Extended heads M 4 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345239 Extended heads M 4 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345233 Extended heads M 5 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345241 Extended heads M 5 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345235 Extended heads M 6 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345243 Extended heads M 6 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345237 Extended heads M 8 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345245 Extended heads M 8 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345230 Extended Tie rod M 4 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345238 Extended Tie rod M 4 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345232 Extended Tie rod M 5 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345240 Extended Tie rod M 5 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345234 Extended Tie rod M 6 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345242 Extended Tie rod M 6 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345236 Extended Tie rod M 8 mm.25 Extended tie-rods and heads for KJ40, KJ60 and KJ70
71345244 Extended Tie rod M 8 mm.50 Extended tie-rods and heads for KJ40, KJ60 and KJ70
713162 Head M 5 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
713439 Head M 6 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
713441 Head M 8 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
713161 Tie rod M 5 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
713440 Tie rod M 6 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
713442 Tie rod M 8 for blind rivets bolts Tie-rod and head for blind rivet bolts for KJ60
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 721779 Riveting tool body 1 160.00
02 712269 Body cover 1 14.10
03 711684 Cylinder bottom plate 1 8.30
04 721685 Pneumatic piston 1 34.60
05 711780 Connector 1 19.90
06 721689 Hydraulic cylinder 1 140.00
07 711781 Rod 1 44.60
08 711691 Silencer 1 1.10
09 711692 Screw TE M7 x 18 1 2.20
10 711782 Shock absorber 1 3.00
11 711694 Lower valve 1 1.20
12 711695 Threaded sleeve 1 7.00
13 721698 Valve body 1 22.20
14 711700 Upper valve 1 3.70
15 711701 Upper valve body 1 8.50
16A 711702 Plate 1 0.00
17 711703 Valve body 2 3.70
18 711704 Valve piston 2 7.00
19 710839 Oil tank plug 1 3.60
20D 711705 Push-button 2 0.00
21B 711713 Spacer 1 0.00
22 710854 Balancer hook 1 3.50
23 721387 Oil container 1 15.40
24 711783 Motor cover 1 5.20
25 72A00126 Pneumatic Motor F002 1 830.10
26 711785 Motor protection sector 1 6.60
27 711786 Ring nut 1 7.00
28 711787 Stop ring 1 9.60
29 712670 Clutch 1 27.30
30 711790 Spring 1 2.80
31 711791 Spring 1 1.60
32E 711792 Ball bushing 1 0.00
33 712270 Rod 1 11.80
34 711794 Hydraulic piston 1 70.10
35 711795 Front connector 1 21.50
36 711796 Shaft 1 28.60
37 711797 Milled sleeve 1 43.70
38 711798 Stroke adjusting ring nut 1 17.50
39 711799 Stroke-adjusting knob 1 8.70
40C 711800 Spring 1 0.00
41 711801 Sleeve carrying tie rod 1 22.40
42C 711802 Tie rod clutch 1 0.00
43 711803 Ring nut 1 3.80
44 711804 Ring nut 1 5.00
45 711805 Head M 3 1 10.60
46 711806 Head M 4 1 10.60
47 711807 Head M 5 1 10.60
48 711808 Head M 6 1 10.60
49 711809 Head M 8 1 10.60
50 711810 Tie rod M 3 1 17.20
51 711811 Tie rod M 4 1 17.20
52 711812 Tie rod M 5 1 17.20
53 711813 Tie rod M 6 1 17.20
54 711814 Tie rod M 8 1 17.20
55 710876 Tie rod release pin 1 3.60
56 710906 Washer 400-020-4490 1 2.20
59D 711726 Dowel pin ø 2 x 20 UNI 1707 3 0.00
60C 710537 Spring pin ø 4 x 12 UNI 6873 1 0.00
61 711815 Ball ø 3,5 2 0.40
62 710911 Ball ø 4 4 0.40
63E 711816 Ball ø 2,5 3 0.00
64 711817 Seeger ring 18 UNI 7437 1 0.40
65B 710902 Seeger ring 16 UNI 7435 1 0.00
66 711818 Seeger ring SW 11 1 0.60
67 711821 Seeger ring JV 20 1 0.90
68 711721 Gasket B-110078-B / NEO 1 17.30
69 711722 Gasket B-094063-B / NEI 1 14.00
70 711819 Gasket B-070039 / 1 1 14.00
71 711820 Gasket TS-10-18-5,8 / L 1 6.30
72A 711727 Screw TSCE M4 x 8 UNI 5933 1 0.00
73 712037 Inox filter ø 6 x 4 2 4.40
74 711092 Wrench 5 mm 1 1.50
75 711728 Gasket OR 2-016 2 0.90
76 711730 Gasket OR 2-119 1 1.70
77 710367 Gasket OR 2-008 1 0.90
78 710376 Gasket OR 2-009 2 0.90
79 710918 Gasket OR 2-005 2 0.90
80 710919 Gasket OR 2-004 2 0.90
81 710003 Gasket OR 5-052 2 0.90
82 710342 Gasket OR 2-017 2 1.00
83 710594 Gasket OR 2-012 1 0.90
84 711061 Gasket OR 5-614 1 1.00
85 711731 Gasket OR 2-018 1 1.50
86 711732 Gasket OR 2-118 1 1.70
87 710258 Gasket OR 5-612 3 0.90
88 711734 Gasket OR 2-232 1 4.40
89 711735 Gasket OR 2-040 1 5.20
90 711834 Silencer 2 1.50
91 711917 Ring Parbak 8-119 1 2.80
92B 711933 Seeger ring JV 24 1 0.00
95 712159 Protection bottom 1 15.10
96 722047 Safety valve assembly 1 18.50
97 712153 Spring 1 1.50
98 712132 Rotating connector 1/8" 1 9.20
99E 713341 Gasket OR 1 x 4 1 0.00
KITA 741702 Plate kit 2.50
Code Description Qty
711702 Plate 2
711727 Screw TSCE M4 x 8 UNI 5933 2
KITB 741713 Spacer Kit 5.00
Code Description Qty
711713 Spacer 1
710902 Seeger ring 16 UNI 7435 1
711933 Seeger ring JV 24 1
KITC 741802 Tie rod clutch kit 13.30
Code Description Qty
711800 Spring 1
711802 Tie rod clutch 1
710537 Spring pin ø 4 x 12 UNI 6873 1
KITD 741705 Push-button Kit 4.80
Code Description Qty
711705 Push-button 2
711726 Dowel pin ø 2 x 20 UNI 1707 3
KITE 741792 Ball bushing kit 8.80
Code Description Qty
711792 Ball bushing 1
711816 Ball ø 2,5 3
713341 Gasket OR 1 x 4 1
KITF 74000043 Tie rod container kit 3.80
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 71345169 Connector 1 65.50
02 71C00764 Bearing 61801 1 42.80
03 71345646 Gear cage 1 116.20
04 71345644 Planetary gear 3 61.80
05 71345643 Crown gear 1 66.70
06 71345642 Washer 1 14.60
07 71C00763 Bearing AY7-ZZ 1 9.20
08 71345640 Connector 1 105.00
09 71C00761 Spring pin ø 1,5 x 10 UNI 6875 2 1.10
10 71345639 Vane 5 11.20
11 71345638 Rotor 1 182.30
12 71345637 Outside body 1 179.70
13 71345641 Back cap 1 69.90
14 713037 Pin ø 2 x 9,8 1 1.10
15 71C00762 Bearing 695-ZZ 1 10.10
16 710376 Gasket OR 2-009 2 0.90
17 71C00529 Gasket XR 008 PP180 B 1 2.90
18 720025 Motor driving rod 1 15.30
19 711869 Spring 1 10.20
20 711865 Cap 1 33.50
21H 71345175 Left spear valve 1 0.00
22H 71345174 Right spear valve 1 0.00
A 72A00126 Pneumatic Motor F002 830.10
KITG 74000051 Body motor kit 156.60
KITH 74000074 Spear valve unit 12.90
Code Description Qty
71345175 Left spear valve 1
71345174 Right spear valve 1
Maintenance and repair

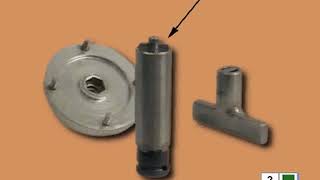

SET OF SPECIAL TOOLS SUPPLIED ON REQUEST NECESSARY MATERIAL FOR REPAIR WORKS
KJ60
  • 32°- viscosity oil
  • Loctite: n. 542
  • Grease
  • Set of commercial adjustable wrenches
  • Set of commercial socket wrenches
  • Rubber coated hammer
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers

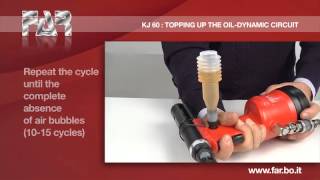

Instructions for refilling the oil

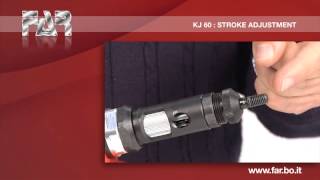

Stroke adjustment

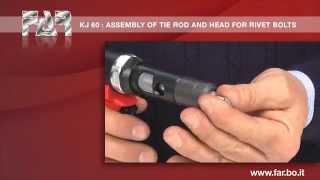

Assembly of tie rod and head for rivet bolts
