RAC 182 - Hydropneumatic tool for blind rivets

Code 700182

RAC 182
RAC 182

HYDRO-PNEUMATIC RIVETING TOOL

with sheared nail recovery safety system, designed for the fastening of standard aluminum rivets from D. 2,4 to 6 mm (Ø 6 mm in aluminium) and high performance rivets up to D. 4.8 mm.
Lightweight and ergonomic, it is equipped with a joint for compressed air on both sides.
Standard rivets Multistage rivets Multinox Tamp Farbolt X/S -Trifar
2,4
3
3,2
3,4
4
4,8
5,2
6
Standard rivets Ø 6 only in aluminium..
The riveting tool can be used for high performances FarBolt rivets and similar, by assembling the KIT cod. 74000090.
The riveting tool is also suitable for X/S Trifar high performance rivets, by assembling the nozzle p/n 71345652.

Maintenance instructions are available in the Video section.
Maximum force 10500 N.
Stroke 20,5 mm.
Download the manual RAC182 maintenance manual
Which is the correct nozzle for a blind rivet? Reference table for noozles
Code Description View
705023 Angle head Angle head
721314 Extended head 130 mm Extended heads
720973 Extended head 210 mm Extended heads
72000552 Extended head with reduced section 35 mm Extended heads with reduced section
72000553 Extended head with reduced section 60 mm Extended heads with reduced section
719007 Extended nozzle U1 ø 2,4 ÷ 3,2 Extended nozzles U1
719001 Extended nozzle U1 ø 3,5 / 4 Extended nozzles U1
719002 Extended nozzle U1 ø 4,8 Extended nozzles U1
719003 Extended nozzle U1 ø 6 ÷ 7,8 Extended nozzles U1
719008 Extended nozzle U2 ø 2,4 ÷ 3,2 Extended nozzles U2
719004 Extended nozzle U2 ø 3,5 / 4 Extended nozzles U2
719005 Extended nozzle U2 ø 5 Extended nozzles U2
719006 Extended nozzle U2 ø 6 ÷ 7,8 Extended nozzles U2
74000090 Kit for high-performance rivets FAR
72000054 Left shell FAR
71345652 Nozzle for rivet S-Trifar / X-Trifar ø 5,2 FAR
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
1 72000322 Handgrip 1 29.60
2 72000364 Riveting tool body 1 57.60
3 711259 Service plug 1 1.80
4 712117 Washer stopping spring 1 1.50
5 710841 Valve 1 10.90
6 710916 Gasket OR 2-015 1 0.90
7 713390 Gasket OR 2-007 2 0.90
8 72000457 Pneumatic cylinder 1 99.40
10 711730 Gasket OR 2-119 1 1.70
11 71346103 Hydraulic piston 1 57.90
12 710917 Gasket OR 2-118 1 1.50
13 711974 Seeger ring JV 22 1 1.10
14 710901 Gasket B-102070 1 12.60
15 710908 Washer 1 0.40
16 71C01698 Guarnizione B-086055 (B/NEI) 1 9.10
17 71346101 Front connector 1 30.40
18 710300 Gasket OR 020 1 0.40
19 710579 Gasket OR 2-113 1 1.00
20 711729 Gasket OR 2-024 1 0.60
21 710102 Gasket OR 113 1 0.40
22 710859 Clamps holding cone 1 18.50
23 71C01736 Washer 400-006-4490 1 2.00
24 71C01278 Screw TBCE M6 x 6 ISO 7380 1 0.90
25 71346060 Sleeve carrying nozzle 1 27.70
26 717004 Nozzle for rivet ø 4,8 Cu / Steel 1 3.00
27 710853 Spring 1 0.90
28 710849 Clamps opener 1 5.00
29 71345507 High-performance clamp 3 7.50
30 710003 Gasket OR 5-052 2 0.90
31 72000530 Nails container 1 8.60
32 711336 Gasket OR 2-114 2 0.90
33 711357 Wrench kit 1 4.50
34 71346455 Bush 1 7.20
35 71346453 Rod 1 34.20
36 71346470 Silencer 1 4.90
37 710528 Gasket OR 008 1 0.40
38 71346452 Rod guide 1 20.90
39 71C01297 Gasket OR 2-043 1 1.60
40 71C01296 Seeger ring 100 UNI 7437 1 3.70
41 71346085 Protection bottom 1 17.40
42 71346469 Tube ø 8 x 7 1 2.20
43 711339 Gasket OR 2-129 1 2.40
44 71346084 Protection bottom 1 8.10
45 716377 Connector 6522 - ø 10 - 1/4" 1 9.20
46 71C01022 Cap 1/4" 1 2.00
47 71346107 Balancer hook 1 4.70
48 711732 Gasket OR 2-118 1 1.70
49 710258 Gasket OR 5-612 1 0.90
50 710350 Gasket OR 2-109 4 1.00
51 717001 Nozzle for rivet ø 2,4 ÷ 3,4 1 3.00
52 717002 Nozzle for rivet ø 4 1 3.00
53 717003 Nozzle for rivet ø 4,8 All. 1 3.00
54 717005 Nozzle for rivet ø 6 / 6,4 1 3.00
55 717006 Nozzle for rivet ø 2,4 1 3.00
56 72A00053 Oil container assembly 1 14.70
57 712329 Reduction 1 3.90
58 71345212 Nails baffle 1 4.30
60 71C01496 Gasket OR 3 x 2 3 0.30
61 710822 Valve piston 1 5.60
62 710905 Seeger ring 11 UNI 7437 1 0.40
63 710922 Gasket OR 018 2 0.40
64 712268 Spring guide plug 1 5.80
65 710402 Seeger ring 22 UNI 7437 1 0.40
66 710837 Screw TE M9 x 20 1 2.00
67 710918 Gasket OR 2-005 2 0.90
68 711704 Valve piston 2 7.00
69 710919 Gasket OR 2-004 2 0.90
70 710376 Gasket OR 2-009 2 0.90
71 711703 Valve body 2 3.70
72 710385 Gasket OR 2-006 1 0.40
73 710572 Gasket OR 2-120 1 1.30
KITA 740821 Anti-extrusion ring kit 7.40
KITB 74000030 Pneumatic piston kit 29.40
KITC 740840 Valve spacer kit 10.70
KITD 74000088 Cone holder kit 31.10
KIT E 74000130 Hydraulic cylinder Kit 114.60
KITF 74000113 Dampener kit 9.10
KITG 741702 Plate kit 2.50
KITH 74000114 Lever kit 10.10
KITM 74000116 Kit back connector 24.50
KITP 74000117 Suction adjustment Kit 11.80
KITQ 74000119 Gaskets kit 14.90
Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
  • Read BEFORE watching the video
  • 01 - Preliminary operations
  • 02 - Disassembly of rear connector
  • 03 - Lever kit disassembly
  • 04 - Maintenance of the pneumatic unit
  • 05 - Maintenance of the coil kit
  • 06 - Disassembly of hangrip unit
  • 07 - Disassembly of the hydraulic unit
  • 08 - Maintenance of the Cone holder
  • 09 - Maintenance of the hydraulic unit
  • 10 - Re-assembly of the hydraulic unit
  • 11 - Re-assembly of the pneumatic unit
  • 12 - Lever kit reassembly
  • 13 - Re-assembly of rear connector
  • 14 - Final operations
SET OF SPECIAL TOOLS SUPPLIED ON REQUEST

RAC182

  • Loctite: n. 270 – n. 542
  • Grease: panolin special grease 2
  • Set of commercial adjustable wrenches
  • Set of commercial allen wrenches
  • Rubber coated hammer
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers

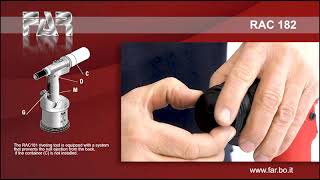

Instructions for use

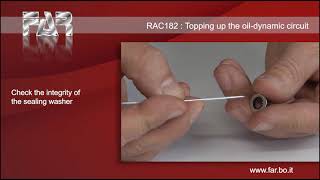

Instructions for refilling the oil

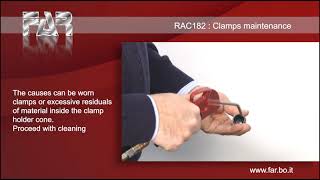

Instructions for clamps maintenance

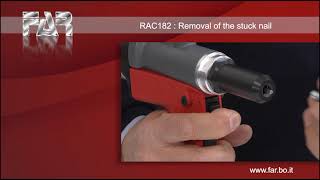

Instructions in case of nail's block
