RAC 2200 - Hydropneumatic tool for blind rivets

RAC 2200 Hydropneumatic tool; booster power apart the body tool.
It is particularly suitable to be used in the assembly line.

Code 702200

RAC 2200
RAC 2200
Standard rivets Multistage rivets Multinox Tamp Farbolt X/S -Trifar
2,4
3
3,2
3,4
4
4,8
5,2
6
Standard rivets Ø 6 only in aluminium.
The riveting tool can be used for high performances FarBolt rivets and similar, by assembling the KIT cod. 74000090.
The riveting tool is also suitable for X/S Trifar high performance rivets, by assembling the nozzle p/n 71345652.

Maintenance instructions are available in the Video section.
Maximum force 12825 N.
Stroke 22.5 mm.
Download the manual RAC2200 use and maintenance manual
Which is the correct nozzle for a blind rivet? Reference table for noozles
Code Description View
721314 Extended head 130 mm Extended heads
720973 Extended head 210 mm Extended heads
72000552 Extended head with reduced section 35 mm Extended heads with reduced section
72000553 Extended head with reduced section 60 mm Extended heads with reduced section
719007 Extended nozzle U1 ø 2,4 ÷ 3,2 Extended nozzles U1
719001 Extended nozzle U1 ø 3,5 / 4 Extended nozzles U1
719002 Extended nozzle U1 ø 4,8 Extended nozzles U1
719003 Extended nozzle U1 ø 6 ÷ 7,8 Extended nozzles U1
719008 Extended nozzle U2 ø 2,4 ÷ 3,2 Extended nozzles U2
719004 Extended nozzle U2 ø 3,5 / 4 Extended nozzles U2
719005 Extended nozzle U2 ø 5 Extended nozzles U2
719006 Extended nozzle U2 ø 6 ÷ 7,8 Extended nozzles U2
74000090 Kit for high-performance rivets FAR
71345652 Nozzle for rivet S-Trifar / X-Trifar ø 5,2 FAR
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01A 711973 Seeger ring AV 16 1 0.00
02A 710845 Stop ring 1 0.00
03 710901 Gasket B-102070 1 12.60
04A 710821 Anti-extrusion ring 1 0.00
05 712281 Piston 1 56.40
06 711119 Spring 1 7.70
07 711120 Spring 1 7.90
08 710850 Spring guide plug 1 18.50
09 710818 Container connector 1 6.50
10 710838 Out put connector 1 3.80
11B 710819 Nails container 1 0.00
12 717004 Nozzle for rivet ø 4,8 Cu / Steel 1 3.00
13 710843 Sleeve carrying nozzle 1 17.50
14 710300 Gasket OR 020 1 0.40
15 710859 Clamps holding cone 1 18.50
16 71345507 High-performance clamp 3 7.50
17 710849 Clamps opener 1 5.00
18 710853 Spring 1 0.90
19H 710834 Suction sleeve 1 0.00
20 710102 Gasket OR 113 1 0.40
21H 710858 Cone holder 1 0.00
22H 710832 Expeller extension 1 0.00
23 710854 Balancer hook 1 3.50
24 710916 Gasket OR 2-015 1 0.90
25 710917 Gasket OR 2-118 1 1.50
26 710855 Sleeving gasket 1 10.70
27 710577 Gasket B-086055 1 12.60
28 710908 Washer 1 0.40
29 711974 Seeger ring JV 22 1 1.10
30 710824 Push button 1 1.40
31 710919 Gasket OR 2-004 1 0.90
32 710847 Valve body 1 7.00
33 710528 Gasket OR 008 1 0.40
34 710848 Valve piston 1 2.80
35 710918 Gasket OR 2-005 1 0.90
36 710842 Suction regulation knob 1 3.70
37 710385 Gasket OR 2-006 4 0.40
38 720812 Handgrip 1 44.00
39 711060 Hydraulic cylinder 1 186.80
42 710906 Washer 400-020-4490 1 2.20
43 710839 Oil tank plug 1 3.60
44 711035 Washer 1 17.40
45 710931 Gasket OR 614 1 0.90
46 711037 Connector 1 48.60
47 711039 Rotating connector 1 41.60
48 711061 Gasket OR 5-614 3 1.00
49 711038 Fixed connector 1 41.60
50 710921 Gasket OR 2-115 1 1.50
51 711036 Reduction 1 14.00
52 711073 High pressure tube mt 1,8 1 91.80
54 711084 Connector 6700 - ø 5 2 4.70
55 711059 Rilsan tube ø 5 x 3,5 x 2600 2 7.90
56 711031 Ending handgrip connector 1 14.00
57 717006 Nozzle for rivet ø 2,4 1 3.00
58 717001 Nozzle for rivet ø 2,4 ÷ 3,4 1 3.00
59 717002 Nozzle for rivet ø 4 1 3.00
60 717003 Nozzle for rivet ø 4,8 All. 1 3.00
61 717005 Nozzle for rivet ø 6 / 6,4 1 3.00
62 711092 Wrench 5 mm 1 1.50
63 710969 Oil container 1 3.00
64B 711136 Air conveyor 1 0.00
65C 710186 Gasket OR 010 1 0.00
66C 711401 End bush 1 0.00
KITA 740821 Anti-extrusion ring kit 7.40
Code Description Qty
711973 Seeger ring AV 16 1
710845 Stop ring 1
710821 Anti-extrusion ring 1
KITB 740819 Nail tank kit 8.70
Code Description Qty
710819 Nails container 1
711136 Air conveyor 1
KITC 741401 End bush kit 4.90
Code Description Qty
710186 Gasket OR 010 2
711401 End bush 2
KITH 740858 Cone holder kit 31.80
Code Description Qty
710834 Suction sleeve 1
710858 Cone holder 1
710832 Expeller extension 1
Export to Excel Export to Excel
Pos. Code Description Qty Price/1 €
01 711824 Connector NV 1/4" NPT-M 1 23.20
02 711823 Connector NV 1/4" NPT-F 1 47.10
03 711825 Connector NPT 1300 1 4.40
04 711662 Oil level HFE.9 1 7.00
05 710375 Gasket OR 2-131 2 1.60
06 711660 Cap 1 45.10
07 711663 Cap 2611-1/4" 1 2.90
08 710211 Screw TCCE M6 x 14 UNI 5931 6 0.40
09 711656 Cylinder head 1 149.60
10 711664 Gasket OR 2-237 1 7.00
11 711658 Booster sleeve 1 99.10
13 711053 Stop ring 1 19.60
14 711066 Ring Sealing RSS 12-20 1 7.50
15 711050 Sleeving gasket 1 41.70
16D 710572 Gasket OR 2-120 1 1.30
17D 711661 Gasket OR 2-135 1 1.50
18D 711065 Ring Sealing WRI 12 1 0.00
19 711827 Gasket TTS-12-19-5,7 / L 1 7.10
20 711657 Rod guide 1 56.40
21 710931 Gasket OR 614 1 0.90
22E 710829 Shock absorber 1 0.00
23 711659 Rod 1 118.20
24E 710923 Gasket OR 012 1 0.40
25 711678 Pneumatic piston 1 70.10
26E 710912 Nut M 10 x 6 1 4.40
27 711679 Gasket OR 2-339 1 6.80
28 711655 Cylinder 1 358.60
29F 711829 Screw TSCE M6 x 20 UNI 5933 2 0.60
30 711828 Foot 1 41.50
31F 710623 Nut M 6 UNI 7473 2 0.60
32 710173 Milled nut connector 1/4" 1 5.70
33 712061 Washer 1 29.00
34G 710840 Valve spacer 1 0.00
35G 710921 Gasket OR 2-115 3 1.50
36G 710823 Cage 3 0.00
37G 711158 Spring 1 0.90
38 710841 Valve 1 10.90
39 710916 Gasket OR 2-015 1 0.90
40 710528 Gasket OR 008 1 0.40
41 710822 Valve piston 1 5.60
42 710258 Gasket OR 5-612 1 0.90
43 710905 Seeger ring 11 UNI 7437 1 0.40
44 710922 Gasket OR 018 2 0.40
45 712268 Spring guide plug 1 5.80
46 711665 Valve cap 1 19.20
47 711085 Silencer SPL 3/8" 1 11.80
48 711068 Connector 6520 - ø 5 - 1/8" 2 6.90
49 711826 Connector 2020 - 1/4" 1 6.80
50 711121 Reduction 2521-1/4"-3/8" 1 6.00
51 712160 Sheath 1 3.00
52 712050 Screw STCE M8 x 8 UNI 5923 1 0.40
KITD 741065 Gaskets kit 7.20
Code Description Qty
710572 Gasket OR 2-120 1
711661 Gasket OR 2-135 1
711065 Ring Sealing WRI 12 1
KITE 740829 Dampener kit 7.10
Code Description Qty
710829 Shock absorber 1
710923 Gasket OR 012 1
710912 Nut M 10 x 6 1
KITF 741829 Screw M 6 kit 4.60
Code Description Qty
711829 Screw TSCE M6 x 20 UNI 5933 5
710623 Nut M 6 UNI 7473 5
KITG 740840 Valve spacer kit 10.70
Code Description Qty
710840 Valve spacer 1
710921 Gasket OR 2-115 3
710823 Cage 3
711158 Spring 1
Maintenance and repair


SET OF SPECIAL TOOLS SUPPLIED ON REQUEST NECESSARY MATERIAL FOR REPAIR WORKS
rac2200
  • 32°- viscosity oil
  • Loctite n. 542
  • Grease
  • Set of commercial adjustable wrenches
  • Set of commercial socket wrenches
  • Rubber coated hammer
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers

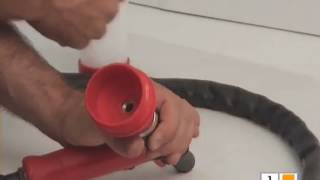

Instructions for refilling the oil

Instructions in case of nail's block

Instructions for clamps maintenance
