Riveting tools out of production - RAC 185

Code 700185_

RAC 185
RAC 185

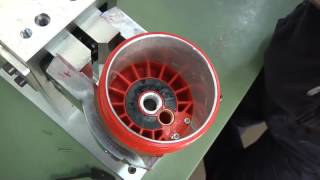

Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
  • Read BEFORE watching the video
  • 01 - Preliminary operations
  • 02 - Disassembly of rear connector and carriage
  • 03 - Disassembly of the cover and automatic piston
  • 04 - Disassembly of wedge, piston and head
  • 05 - Disassembly of valve group
  • 06 - Disassembly of push-button and start lever
  • 07 - Disassembly and reassembly of the body
  • 08 - Assembly of push-button, start lever and valve group
  • 09 - Assembly of wedge, piston and head
  • 10 - Assembly of the cover and automatic piston
  • 11 - Assembly of clamps and reassembly of the carriage
  • 12 - Maintenance and assembly of the rear connector
  • 13 - Final operations


SET OF SPECIAL TOOLS SUPPLIED ON REQUEST NECESSARY MATERIAL FOR REPAIR WORKS
RAC185
  • Loctite: n. 270 - n. 542 - n. 638
  • Grease: Panolin special grease 2
  • Grease: Rheolube 362 hb
  • Grease: Sliding grease hd 200 f
  • Set of commercial adjustable wrenches
  • Set of commercial allen wrenches
  • Hammer
  • Rubber coated hammer
  • Pliers
  • Pliers for seeger rings
  • Set of screwdrivers

Instructions for clamps maintenance

Instructions in case of nail's block
