FHU 05 - Attrezzo per l’installazione di bulloni a strappo (pin&collar) e altri prodotti strutturali
FHU 05
Attrezzo
Attrezzo da equipaggiare con specifiche teste.
Principali dati tecnici:
Forza massima: 22725 N
Corsa: 19.5 mm
Cod. 70FHU05


Pos. | Codice | Descrizione | Qta | Prezzo/1 € |
---|---|---|---|---|
01 | 711366 | Ghiera | 1 | 21,50 |
02 | 711368 | Raccordo | 1 | 38,20 |
03 | 710579 | Guarnizione OR 2-113 | 2 | 1,00 |
06 | 723264 | Struttura testa porta cono | 1 | 59,20 |
07 | 711336 | Guarnizione OR 2-114 | 1 | 0,90 |
08 | 713263 | Raccordo anteriore | 1 | 44,60 |
09 | 713272 | Guarnizione OR 2-125 | 2 | 1,50 |
10 | 713278 | Guarnizione OR 2-122 | 3 | 1,50 |
11 | 713277 | Anello Parbak 8-122 | 1 | 3,60 |
12 | 711722 | Guarnizione B-094063-B / NEI | 1 | 14,00 |
13 | 713276 | Guarnizione TSE-134094 | 1 | 12,60 |
14 | 713258 | Anello anti estrusione | 1 | 7,30 |
15 | 713251 | Pistone oleodinamico | 1 | 91,50 |
16 | 713273 | Guarnizione OR 17,5 x 1,5 | 2 | 0,90 |
17 | 713274 | Guarnizione OR 8 x 1,5 | 2 | 0,90 |
18 | 713247 | Bussola | 1 | 4,20 |
19 | 711821 | Anello Seeger JV 20 | 1 | 0,90 |
20 | 713275 | Guarnizione OR 2-122 | 1 | 1,50 |
21 | 723269 | Cilindro Oleodinamico | 1 | 170,10 |
22 | 71346119 | Gancio bilanciatore | 1 | 4,90 |
23 | 710350 | Guarnizione OR 2-109 | 2 | 1,00 |
24 | 713250 | Raccordo posteriore | 1 | 21,00 |
25 | 711370 | Raccordo uscita | 1 | 7,10 |
26 | 712283 | Protezione | 1 | 3,00 |
27 | 713279 | Guarnizione TSE 14 x 23 x 6 | 1 | 12,60 |
28 | 713280 | Guarnizione TTS 14 x 23 x 5,8 / L | 1 | 9,10 |
29 | 710367 | Guarnizione OR 2-008 | 1 | 0,90 |
30 | 722036 | Corpo valvolina lunga | 1 | 30,30 |
31 | 710918 | Guarnizione OR 2-005 | 1 | 0,90 |
32 | 711253 | Pistoncino valvola | 1 | 8,30 |
33 | 710919 | Guarnizione OR 2-004 | 1 | 0,90 |
34 | 710824 | Pulsante | 1 | 1,40 |
35A | 712145 | Dado M 3 UNI 5587 | 1 | 0,00 |
36A | 712144 | Vite TCCE M3 x 20 UNI 5931 | 1 | 0,00 |
37 | 710906 | Rondella 400-020-4490 | 1 | 2,20 |
38 | 710839 | Tappo serbatoio olio | 1 | 3,60 |
39 | 711259 | Tappo di servizio | 1 | 1,80 |
40 | 712117 | Rondella arresto molla | 1 | 1,50 |
41B | 710840 | Distanziale valvola | 1 | 0,00 |
42B | 710823 | Gabbia | 3 | 0,00 |
43B | 711158 | Molla | 1 | 0,90 |
44B | 710921 | Guarnizione OR 2-115 | 3 | 1,50 |
45 | 710841 | Spoletta | 1 | 10,90 |
46 | 710916 | Guarnizione OR 2-015 | 1 | 0,90 |
47 | 710528 | Guarnizione OR 008 | 1 | 0,40 |
48 | 710822 | Pistoncino valvola | 1 | 5,60 |
49 | 710258 | Guarnizione OR 5-612 | 1 | 0,90 |
50 | 710905 | Anello Seeger 11 UNI 7437 | 1 | 0,40 |
51 | 710922 | Guarnizione OR 018 | 2 | 0,40 |
52 | 712268 | Tappo guida molla | 1 | 5,80 |
53 | 710402 | Anello Seeger 22 UNI 7437 | 1 | 0,40 |
54 | 721224 | Corpo rivettatrice | 1 | 215,20 |
55 | 712282 | Ranella di sicurezza ø 12,7 | 1 | 0,90 |
56 | 710909 | Raccordo 2023 - 1/4"- 1/4" | 1 | 7,70 |
57 | 711305 | Raccordo 1631.01 - 1/4" | 1 | 5,90 |
58 | 712162 | Protezione esterna silenziatore | 1 | 2,00 |
59 | 711304 | Silenziatore 1/4" | 1 | 14,20 |
60 | 712133 | Raccordo girevole | 1 | 9,20 |
61 | 713260 | Raccordo guida stelo | 1 | 21,00 |
62 | 711339 | Guarnizione OR 2-129 | 1 | 2,40 |
63 | 710548 | Ammortizzatore | 1 | 2,60 |
64 | 713259 | Stelo | 1 | 45,40 |
65 | 711252 | Tubo ø 8 x 7 | 1 | 4,50 |
66 | 711258 | Rondella | 1 | 8,20 |
67 | 721226 | Pistone pneumatico | 1 | 34,60 |
68 | 711340 | Guarnizione OR 2-343 | 1 | 8,90 |
69 | 710596 | Vite TE M10 x 17 | 1 | 2,20 |
70 | 711386 | Guarnizione OR 2-045 | 1 | 6,00 |
71 | 711255 | Fondello | 1 | 17,60 |
72 | 711225 | Coperchio cilindro | 1 | 21,50 |
73 | 711737 | Fondello di protezione | 1 | 14,80 |
74 | 711092 | Chiave a brugola 5 mm | 1 | 1,50 |
75 | 721387 | Contenitore olio | 1 | 15,40 |
76 | 712016 | Raccordo 2 | 1 | 26,90 |
77 | 711337 | Guarnizione OR 2-021 | 1 | 0,90 |
KITA | 742144 | Kit Vite M 3 | 3,80 |
Codice | Descrizione | Qta |
---|---|---|
712145 | Dado M 3 UNI 5587 | 5 |
712144 | Vite TCCE M3 x 20 UNI 5931 | 5 |
KITB | 740840 | Kit Distanziale valvola | 10,70 |
Codice | Descrizione | Qta |
---|---|---|
710840 | Distanziale valvola | 1 |
710823 | Gabbia | 3 |
711158 | Molla | 1 |
710921 | Guarnizione OR 2-115 | 3 |
Istruzioni per il rabbocco dell'olio

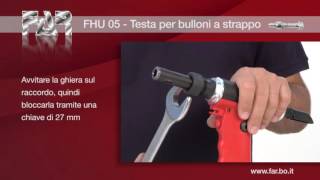

Montaggio teste bulloni a strappo esempio 1

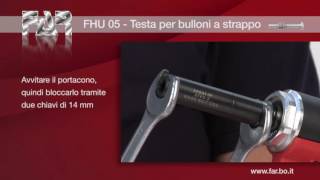

Montaggio teste bulloni a strappo esempio 2
Montaggio testa per rivetti strutturali
