RAC 2200 - Rivettatrice oleopneumatica per rivetti a strappo
RAC 2200
Rivettatrice oleopneumatica;
booster di potenza separato dal corpo rivettatrice.
E' particolarmente indicata per impieghi in catene di montaggio.
Cod. 702200
74000090 |
Kit per Rivetti ad alte prestazioni |
 |
72000553 |
TESTA A SEZIONE RIDOTTA MM.60 |
 |
721314 |
Testa prolungata 130 mm |
 |
720973 |
Testa prolungata 210 mm |
 |
72000552 |
Testa prolungata a sezione ridotta 35 mm |
 |
71345652 |
Ugello per rivetto S-Trifar / X-Trifar ø 5,2 |
 |
719007 |
Ugello prol. U1 per rivetto ø 2,4 ÷ 3,2 |
 |
719001 |
Ugello prol. U1 per rivetto ø 3,5 / 4 |
 |
719002 |
Ugello prol. U1 per rivetto ø 4,8 |
 |
719003 |
Ugello prol. U1 per rivetto ø 6 ÷ 7,8 |
 |
719008 |
Ugello prol. U2 per rivetto ø 2,4 ÷ 3,2 |
 |
719004 |
Ugello prol. U2 per rivetto ø 3,5 / 4 |
 |
719005 |
Ugello prol. U2 per rivetto ø 5 |
 |
719006 |
Ugello prol. U2 per rivetto ø 6 ÷ 7,8 |
 |
|
|
|
01A |
711973 |
Anello Seeger AV 16 |
1 |
0,00 |
02A |
710845 |
Anello di arresto guarnizione |
1 |
0,00 |
03 |
710901 |
Guarnizione B-102070 |
1 |
12,60 |
04A |
710821 |
Anello anti estrusione |
1 |
0,00 |
05 |
712281 |
Pistone |
1 |
56,40 |
06 |
711119 |
Molla |
1 |
7,70 |
07 |
711120 |
Molla |
1 |
7,90 |
08 |
710850 |
Tappo guida molla |
1 |
18,50 |
09 |
710818 |
Raccordo contenitore |
1 |
6,50 |
10 |
710838 |
Raccordo uscita |
1 |
3,80 |
11B |
710819 |
Contenitore chiodi |
1 |
0,00 |
12 |
717004 |
Ugello per rivetto ø 4,8 Cu / Acc. |
1 |
3,00 |
13 |
710843 |
Cannotto porta ugello |
1 |
17,50 |
14 |
710300 |
Guarnizione OR 020 |
1 |
0,40 |
15 |
710859 |
Cono porta morsetti |
1 |
18,50 |
16 |
71345507 |
Morsetto alta prestazione |
3 |
7,50 |
17 |
710849 |
Apri morsetti |
1 |
5,00 |
18 |
710853 |
Molla |
1 |
0,90 |
19H |
710834 |
Cannotto aspirazione |
1 |
0,00 |
20 |
710102 |
Guarnizione OR 113 |
1 |
0,40 |
21H |
710858 |
Porta cono |
1 |
0,00 |
22H |
710832 |
Prolunga espulsione |
1 |
0,00 |
23 |
710854 |
Gancio bilanciatore |
1 |
3,50 |
24 |
710916 |
Guarnizione OR 2-015 |
1 |
0,90 |
25 |
710917 |
Guarnizione OR 2-118 |
1 |
1,50 |
26 |
710855 |
Bussola per guarnizione |
1 |
10,70 |
27 |
710577 |
Guarnizione B-086055 |
1 |
12,60 |
28 |
710908 |
Rondella |
1 |
0,40 |
29 |
711974 |
Anello Seeger JV 22 |
1 |
1,10 |
30 |
710824 |
Pulsante |
1 |
1,40 |
31 |
710919 |
Guarnizione OR 2-004 |
1 |
0,90 |
32 |
710847 |
Corpo valvolina |
1 |
7,00 |
33 |
710528 |
Guarnizione OR 008 |
1 |
0,40 |
34 |
710848 |
Pistone valvola |
1 |
2,80 |
35 |
710918 |
Guarnizione OR 2-005 |
1 |
0,90 |
36 |
710842 |
Pomello regolazione aspirazione |
1 |
3,70 |
37 |
710385 |
Guarnizione OR 2-006 |
4 |
0,40 |
38 |
720812 |
Impugnatura |
1 |
44,00 |
39 |
711060 |
Cilindro Oleodinamico |
1 |
186,80 |
42 |
710906 |
Rondella 400-020-4490 |
1 |
2,20 |
43 |
710839 |
Tappo serbatoio olio |
1 |
3,60 |
44 |
711035 |
Rondella |
1 |
17,40 |
45 |
710931 |
Guarnizione OR 614 |
1 |
0,90 |
46 |
711037 |
Raccordo |
1 |
48,60 |
47 |
711039 |
Raccordo girevole |
1 |
41,60 |
48 |
711061 |
Guarnizione OR 5-614 |
3 |
1,00 |
49 |
711038 |
Raccordo fisso |
1 |
41,60 |
50 |
710921 |
Guarnizione OR 2-115 |
1 |
1,50 |
51 |
711036 |
Riduzione |
1 |
14,00 |
52 |
711073 |
Tubo alta pressione mt 1,8 |
1 |
91,80 |
54 |
711084 |
Raccordo 6700 - ø 5 |
2 |
4,70 |
55 |
711059 |
Tubo Rilsan ø 5 x 3,5 x 2600 |
2 |
7,90 |
56 |
711031 |
Raccordo finale impugnatura |
1 |
14,00 |
57 |
717006 |
Ugello per rivetto ø 2,4 |
1 |
3,00 |
58 |
717001 |
Ugello per rivetto ø 2,4 ÷ 3,4 |
1 |
3,00 |
59 |
717002 |
Ugello per rivetto ø 4 |
1 |
3,00 |
60 |
717003 |
Ugello per rivetto ø 4,8 All. |
1 |
3,00 |
61 |
717005 |
Ugello per rivetto ø 6 / 6,4 |
1 |
3,00 |
62 |
711092 |
Chiave a brugola 5 mm |
1 |
1,50 |
63 |
710969 |
Contenitore olio |
1 |
3,00 |
64B |
711136 |
Convogliatore aria |
1 |
0,00 |
65C |
710186 |
Guarnizione OR 010 |
1 |
0,00 |
66C |
711401 |
Bussola finale |
1 |
0,00 |
|
|
|
|
KITA |
740821 |
Kit Anello anti estrusione |
|
7,40 |
711973 |
Anello Seeger AV 16 |
1 |
710845 |
Anello di arresto guarnizione |
1 |
710821 |
Anello anti estrusione |
1 |
|
|
|
KITB |
740819 |
Kit Contenitore chiodi |
|
8,70 |
710819 |
Contenitore chiodi |
1 |
711136 |
Convogliatore aria |
1 |
|
|
|
KITC |
741401 |
Kit Bussola finale |
|
4,90 |
710186 |
Guarnizione OR 010 |
2 |
711401 |
Bussola finale |
2 |
|
|
|
KITH |
740858 |
Kit Porta cono |
|
31,80 |
710834 |
Cannotto aspirazione |
1 |
710858 |
Porta cono |
1 |
710832 |
Prolunga espulsione |
1 |
|
|
|
01 |
711824 |
Raccordo NV 1/4" NPT-M |
1 |
23,20 |
02 |
711823 |
Raccordo NV 1/4" NPT-F |
1 |
47,10 |
03 |
711825 |
Raccordo NPT 1300 |
1 |
4,40 |
04 |
711662 |
Livello olio HFE.9 |
1 |
7,00 |
05 |
710375 |
Guarnizione OR 2-131 |
2 |
1,60 |
06 |
711660 |
Tappo |
1 |
45,10 |
07 |
711663 |
Tappo 2611-1/4" |
1 |
2,90 |
08 |
710211 |
Vite TCCE M6 x 14 UNI 5931 |
6 |
0,40 |
09 |
711656 |
Testata cilindro |
1 |
149,60 |
10 |
711664 |
Guarnizione OR 2-237 |
1 |
7,00 |
11 |
711658 |
Cannotto Booster |
1 |
99,10 |
13 |
711053 |
Anello di arresto guarnizione |
1 |
19,60 |
14 |
711066 |
Anello Sealing RSS 12-20 |
1 |
7,50 |
15 |
711050 |
Bussola per guarnizione |
1 |
41,70 |
16D |
710572 |
Guarnizione OR 2-120 |
1 |
1,30 |
17D |
711661 |
Guarnizione OR 2-135 |
1 |
1,50 |
18D |
711065 |
Anello Sealing WRI 12 |
1 |
0,00 |
19 |
711827 |
Guarnizione TS-12-19-5,7 / L |
1 |
7,10 |
20 |
711657 |
Guida stelo |
1 |
56,40 |
21 |
710931 |
Guarnizione OR 614 |
1 |
0,90 |
22E |
710829 |
Ammortizzatore |
1 |
0,00 |
23 |
711659 |
Stelo |
1 |
118,20 |
24E |
710923 |
Guarnizione OR 012 |
1 |
0,40 |
25 |
711678 |
Pistone pneumatico |
1 |
70,10 |
26E |
710912 |
Dado M 10 x 6 |
1 |
4,40 |
27 |
711679 |
Guarnizione OR 2-339 |
1 |
6,80 |
28 |
711655 |
Cilindro |
1 |
358,60 |
29F |
711829 |
Vite TSCE M6 x 20 UNI 5933 |
2 |
0,60 |
30 |
711828 |
Piede |
1 |
41,50 |
31F |
710623 |
Dado M 6 UNI 7473 |
2 |
0,60 |
32 |
710173 |
Raccordo dado fresato 1/4" |
1 |
5,70 |
33 |
712061 |
Rondella |
1 |
29,00 |
34G |
710840 |
Distanziale valvola |
1 |
0,00 |
35G |
710921 |
Guarnizione OR 2-115 |
3 |
1,50 |
36G |
710823 |
Gabbia |
3 |
0,00 |
37G |
711158 |
Molla |
1 |
0,90 |
38 |
710841 |
Spoletta |
1 |
10,90 |
39 |
710916 |
Guarnizione OR 2-015 |
1 |
0,90 |
40 |
710528 |
Guarnizione OR 008 |
1 |
0,40 |
41 |
710822 |
Pistoncino valvola |
1 |
5,60 |
42 |
710258 |
Guarnizione OR 5-612 |
1 |
0,90 |
43 |
710905 |
Anello Seeger 11 UNI 7437 |
1 |
0,40 |
44 |
710922 |
Guarnizione OR 018 |
2 |
0,40 |
45 |
712268 |
Tappo guida molla |
1 |
5,80 |
46 |
711665 |
Tappo valvola |
1 |
19,20 |
47 |
711085 |
Silenziatore SPL 3/8" |
1 |
11,80 |
48 |
711068 |
Raccordo 6520 - ø 5 - 1/8" |
2 |
6,90 |
49 |
711826 |
Raccordo 2020 - 1/4" |
1 |
6,80 |
50 |
711121 |
Riduzione 2521-1/4"-3/8" |
1 |
6,00 |
51 |
712160 |
Guaina contenimento tubi |
1 |
3,00 |
52 |
712050 |
Vite STCE M8 x 8 UNI 5923 |
1 |
0,40 |
|
|
|
|
KITD |
741065 |
Kit Guarnizioni |
|
7,20 |
710572 |
Guarnizione OR 2-120 |
1 |
711661 |
Guarnizione OR 2-135 |
1 |
711065 |
Anello Sealing WRI 12 |
1 |
|
|
|
KITE |
740829 |
Kit Ammortizzatore |
|
7,10 |
710829 |
Ammortizzatore |
1 |
710923 |
Guarnizione OR 012 |
1 |
710912 |
Dado M 10 x 6 |
1 |
|
|
|
KITF |
741829 |
Kit Vite M 6 |
|
4,60 |
711829 |
Vite TSCE M6 x 20 UNI 5933 |
5 |
710623 |
Dado M 6 UNI 7473 |
5 |
|
|
|
KITG |
740840 |
Kit Distanziale valvola |
|
10,70 |
710840 |
Distanziale valvola |
1 |
710921 |
Guarnizione OR 2-115 |
3 |
710823 |
Gabbia |
3 |
711158 |
Molla |
1 |
|
|
|
Manutenzione e riparazione
SERIE DI ATTREZZI SPECIALI FORNIBILI A RICHIESTA |
MATERIALE NECESSARIO PER EFFETTUARE LE RIPARAZIONI
|
|
- Olio viscosita' 32°
- Loctite n. 542
- Grasso
- Serie chiavi commerciali aperte (inglesi)
- Serie chiavi commerciali 4 (a tubo)
- Martello con terminale in gomma
- Pinze
- Pinze per seeger
- Serie cacciaviti
|

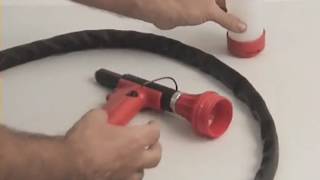

Istruzioni per il rabbocco olio
Rimozione del chiodo bloccato
Istruzioni per la manutenzione dei morsetti
