KJ73 - NITOWNICA OLEO-PNEUMATYCZNA DO NITONAKRĘTEK M4/M12
KJ73
Nitownica pneumatyczna do nitonakrętek remachables M4 ÷ M12.
Siłownik oddzielny.
Nitownica szczególnie polecana do pracy na liniach montażowych o dużej wydajności.
Nitownica szczególnie polecana do pracy na liniach montażowych o dużej wydajności.
Kod 700073_

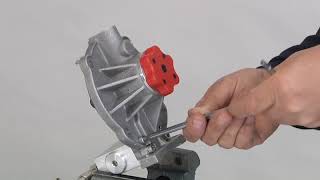

Maintenance and repair
INDEX OF THE DISPLAYED OPERATIONS
- Read BEFORE watching the video
- 01 - Preliminary operations
- 02 - Disassembly of the rear head and jacket
- 03 - Pneumatic piston disassemble
- 04 - Disassembly of the front head and booster tube
- 05 - Coil kit maintenance
- 06 - Rear head maintenance
- 07 - Reassembly of the front head and booster tube
- 08 - Reassembly of the pneumatic piston
- 09 - Reassembly of jacket and rear head
- 10 - Final assembly of the booster group
- 11 - Disassembly of the high pressure hose and connectors
- 12 - Handle disassembling
- 13 - Pneumatic motor disassemble
- 14 - Hydraulic unit disassemble
- 15 - Maintenance of the hydraulic unit
- 16 - Pneumatic motor maintenance
- 17 - Handle maintenance
- 18 - Connectors maintenance
- 19 - Reassembly of the hydraulic unit
- 20 - Refitting the pneumatic motor and handle assembly
- 21 - Reassembly and control of the traction unit
- 22 - Reassembly of fittings and high pressure hose
- 23 - Reassembly of tie rod, connector and head
- 24 - Final operations
| SET OF SPECIAL TOOLS SUPPLIED ON REQUEST | NECESSARY MATERIAL FOR REPAIR WORKS |
|
|
Regulacja skoku nitownicy do nitonakrętek KJ73

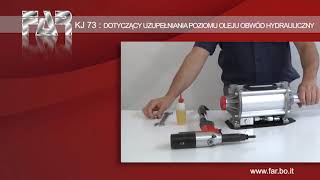

Dolewanie oleju do nitownicy do nitonakrętek KJ73
